Acoustic Panel – Walnut

189.00 inc. V.A.T.

Kr. 1,300,- per. panel

  • Acoustic panels for ceiling and wall produced in Denmark.

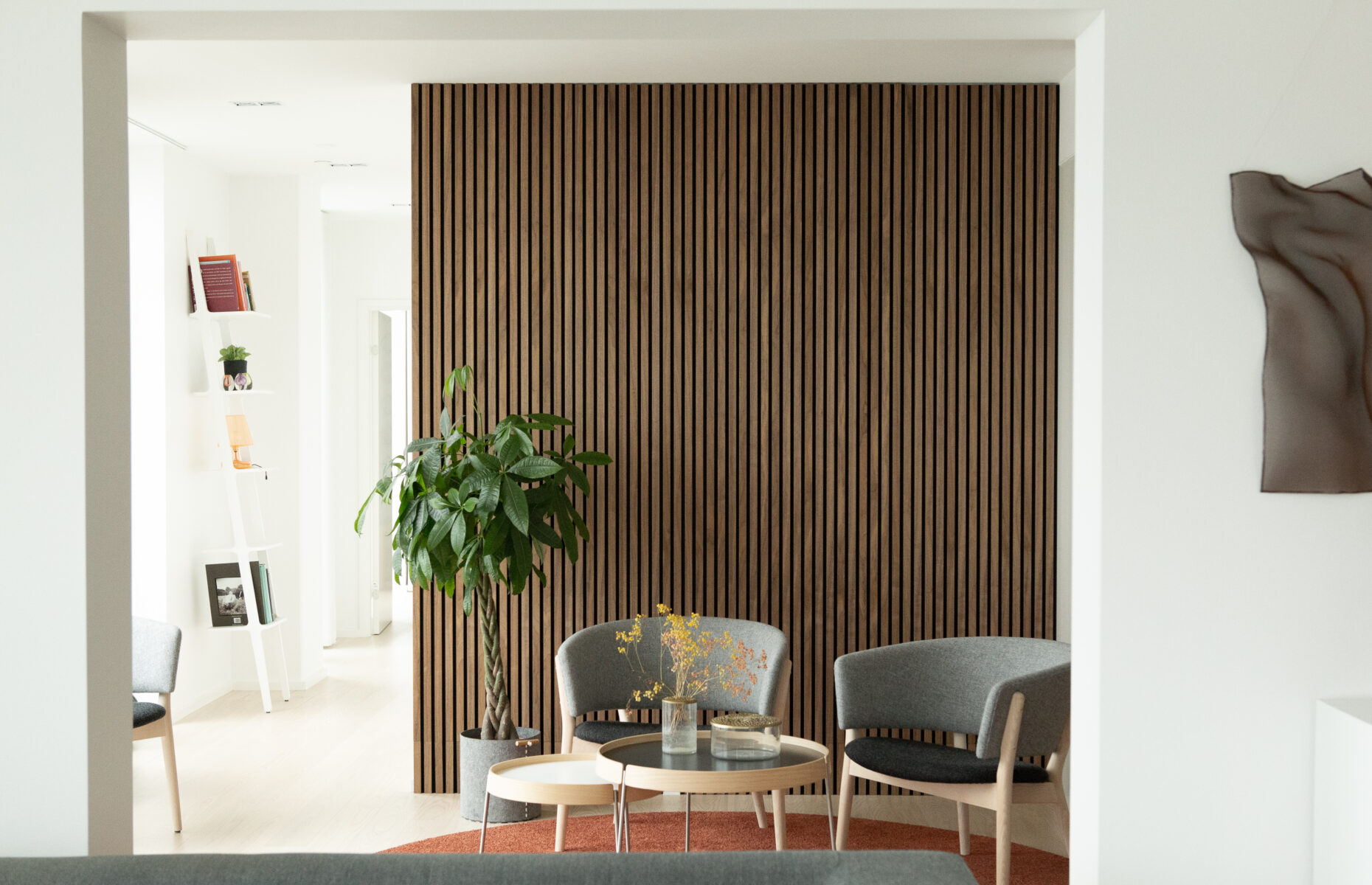

  • Acoustic Panel gives a beautiful and modern look as well as improving the acoustics in your home significantly.
  • Lists of Walnyt Veneer on black medium density fibreboard mounted on a black specially developed acoustic felt.
  • The Panels is delivered in preassembled modules measuring 2400 x 600 x 20 mm, which makes the mounting super simple.
  • The acoustic panels can be sawed and mounted in extension in the case your wall i higher than 2400 mm.

Choose number of panels here
(Panel dimensions 2400 × 600 mm)

Category:

Description

Measure and dimensions

An Acoustic Panel measures 2400 x 600 mm, and is made from lamellae 11 mm and 27 mm deep, with a distance of 13 mm in between. The lamellae is mounted on a base of acoustic felt. The specially developed acoustic felt is made from recycled material, and is 9 mm thick. The panel is 20 mm thick all in all.

Dampen sounds, remove reverb and create a fantastic sound environment.

Having trouble hearing what your guests are saying? Problems with poor acoustics is a major problem in many homes, but with a list wall you can create acoustic wellbeing for yourself, your family, and your guests.

Sound consists of waves. And when sound waves hit a hard surface the sound is not decelerated but reflected throughout the room resulting in reverberation / reverb. The acoustic panel dampens the sound by absorbing the sound waves when they hit the felt, so the sound perish into the felt instead of around the room.

Sound test – technical specifications:

On the graph it can be observed that the panel obtains absorption coefficient of 0.97 at a frequency of 1,000 Hz. Loud speech and regular noise in the home will be in the frequency between 500 – 2,000 Hz, and as it can be observed on the graph is is right here the Acoustic Panel is most efficient.

The sound test you see here is based on the acoustic panels mounted on a 45 mm stripwood with air behind the panels. You can achieve an even better absorption ability, if you place 45 mm insulation (e.g. Rockwoll) behind the panels.

You do not need to be handy to be able to do the mounting.

It is easy to mount a list wall. It is done by screwing stripwood onto the wall, and then screwing the panels on that subsequently. We recommend to use stripwood 45 mm thick, because we applied this setup when performing our sound test. However, you can also use thinner stripwood / laths or mount them directly onto the wall. It is up to you. You can find our mounting guide under ‘How to’ in the menu.

Do you have any questions?

If you have any questions regarding how much Acoustic Panel to buy to cover your wall, how to mount it, or something entirely different, do not hesitate to give us a call on +353 1 839 6516



Additional information

Weight 400.1 kg
Length

2600 mm

Width

600 mm

Thickness

22 mm

Weight

12,5 kg
